The Universal Rotation Units enhance assembly presses by enabling rotational motion during or prior to the joining process. These versatile units can be customized to meet specific torque requirements and easily mounted on various presses. Ideal for aligning or orienting parts before joining, applying torque to measure rotational stiffness, or rotating parts during pressing, they add flexibility and precision to your assembly line. Tailored mounting plates ensure seamless integration with existing systems, making the Universal Rotation Units a powerful tool for optimizing complex manufacturing tasks.
| Designation | Torque Nm | Speed Rpm | Perm. axial force kN | ||||||
|---|---|---|---|---|---|---|---|---|---|
| UDR 5/1000 | 5 | 1000 | 12 | ||||||
| UDR 10/500 | 10 | 500 | 12 | ||||||
| UDR 20/200 | 20 | 200 | 20 | ||||||
| UDR 50/100 | 50 | 100 | 20/40/60 | ||||||
| UDR 100/50 | 100 | 50 | 20/40/60 |

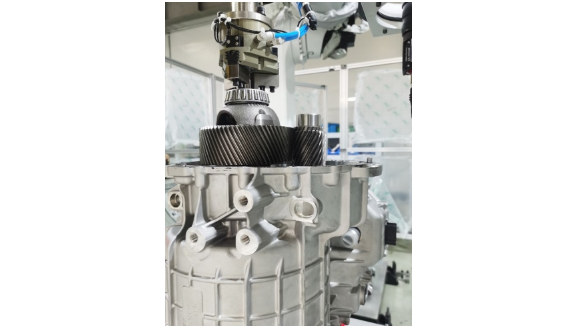

Install the intermediate shaft and the main shaft gear matching to the housing position
Ensuring that the intermediate shaft and main shaft gears are perfectly aligned is critical to avoiding misalignment
With the Promess unit, the customer performs accurate assembly using revolution vs. torque and displacement vs. force tests, detecting perfectly aligned positions
