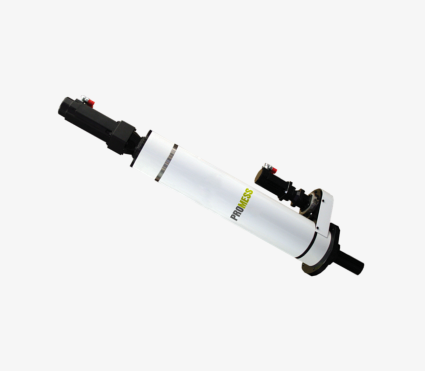

The Rotational Assembly Press (REMAP) is designed for high-demand applications requiring both linear and rotational motion. Controlled and monitored by PROMESS software, REMAP enables real-time force, position, and torque tracking. Its compact design makes it ideal for tight spaces, like gearboxes. With fully programmable axes for precise control over position, speed, and torque, REMAP simplifies complex assembly tasks. Integrated force and torque transducers ensure accuracy, while real-time data acquisition and user-friendly software make setup and operation seamless. REMAP is a complete, ready-to-run solution that combines flexibility, precision, and reliability for modern assembly lines.
| Designation | Torque Nm | Speed mm/s | Stroke mm | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 3749124502VP | 50 | 200 | 400 |

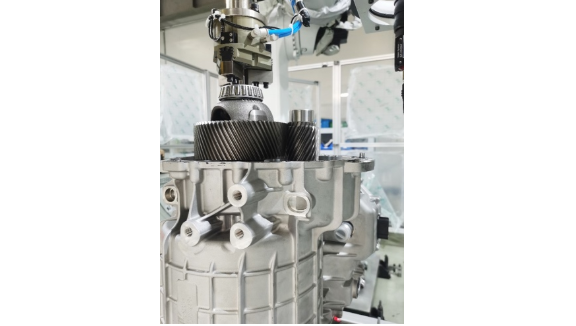

Install the intermediate shaft and the main shaft gear matching to the housing position
Ensuring that the intermediate shaft and main shaft gears are perfectly aligned is critical to avoiding misalignment
With the Promess unit, the customer performs accurate assembly using revolution vs. torque and displacement vs. force tests, detecting perfectly aligned positions
