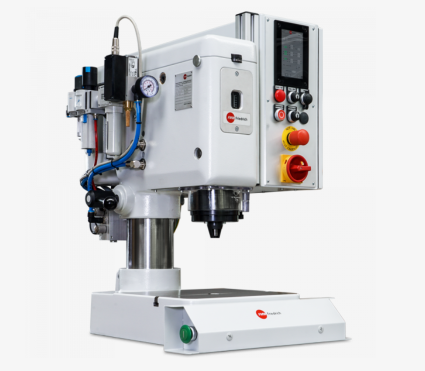

FMW Friedrich's column riveting machines offer precise and efficient riveting for a wide range of applications. With a solid, column-based design, these machines ensure stability and high-quality results in both manual and automated processes. They feature easy operation, high repeatability, and minimal maintenance, making them ideal for long-term use in industrial settings. The machines are adaptable, offering multiple riveting methods to suit various materials and product designs. With robust construction and advanced technology, FMW Friedrich column riveting machines provide reliable performance and flexibility, making them a key solution for modern manufacturing needs.
| N100 | N200 | |
| Riveting diameter (mm) (Rm=370 N/mm²) |
1 - 4 / 2 - 6 | 3 - 10 |
| Maximum riveting force(kN) | 3 / 6 | 12 |
| Spindle stroke (mm) | 5 - 30 | 5 - 30 |
| Working pressure (bar) | 1 - 6 pn. | 1 - 6 pn. |
| Riveting motor230/400 V 50 Hz (kW) | 0,74 | 0,74 |
| Maximum double stroke volume (l) | 0,35 / 0,7 | 1,45 |
| Approx. weight (kg) | 170 | 170 |
| Working area (mm) | 19,5 - 229,5 / 2,5 - 212,5 | 19,5 - 229,5 / 2,5 - 212,5 |
| Projection (mm) | 170 | 170 |
| Clamping area (mm) | 320x290 | 320x290 |
| Riveting die diam. (mm) | 10 / 14 | 14 / 10 |
| Riveting die length (mm) | 40 - 120 / 40 - 170 | 40 - 170 / 40 - 120 |

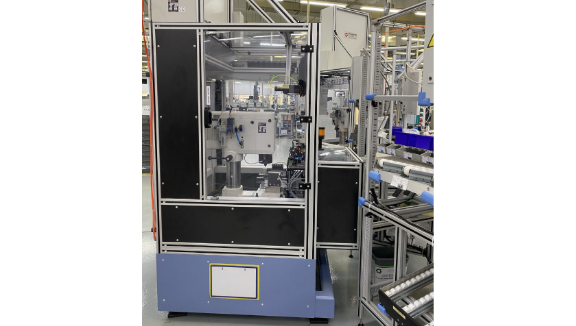

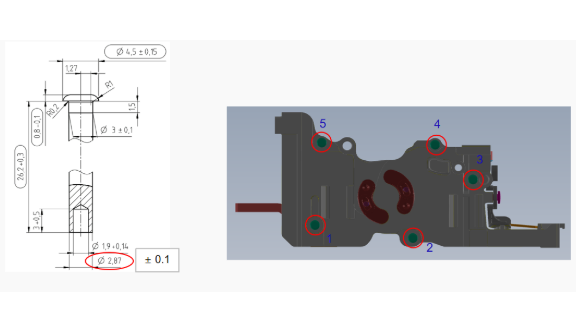

Automatic flange riveting - five rivets.
Ensure no case damage, rivet cracking, or large gaps after riveting.
This application requires the riveting machine to have a stable riveting capacity, including riveting force and riveting displacement.
Old Cpk≥1.33
New Cpk≥2
