FMW Friedrich's riveting units offer precision and versatility for a wide range of riveting applications. These compact units are designed for easy integration into automated production lines or standalone use, delivering consistent and reliable performance. With advanced control systems and adjustable settings, they provide flexibility to handle different materials and riveting processes. The units are robust, durable, and engineered for long-term use with minimal maintenance. Ideal for industries requiring high precision and efficiency, FMW Friedrich’s riveting units ensure smooth, high-quality riveting operations, enhancing productivity and reducing downtime in modern manufacturing environments.
| NE0-A | RE100 | NE100 / NE200 | NE2-K | NE4-U | |
| Riveting diameter (mm) (Rm=370 N/mm²) |
0,4 - 3,5 | 1 - 3 / 2 -6 / 2 - 7 | 1 - 4 / 2 -6 / 3 - 10 | 3 -10 | 3 - 12 / 4 - 18 |
| Maximum riveting force (kN) | 0,7 / 1,3 / 1,9 | 2,5 / 6,5 / 8,2 | 3 - 6 / 12 | 6 / 12 | 15/20 / 30/40 |
| Spindle strok (mm) | 5 - 50 | 5 - 30 | 5 - 30 | 5 - 50 | 5 - 60 |
| Working pressure (bar) | 1 - 6 pn. | 1 - 6 pn. | 1 - 6 pn. | 1 - 6 pn. | 1 - 6 / 8 pn. |
| Riveting motor 230/400 V 50 Hz (kW) | 0,084 (24V DC) 0,36 (48V DC) |
0,37 | 0,74 | 0,56 | 1,9 |
| Maximum double stroke volume (l) | 0,12 / 0,17 / 0,22 | 0,58 / 0,78 | 0,35 / 0,7 / 1,45 | 1,06 / 1,67 | 3 / 4,6 |
| Approx. weight. (kg) | 35 | 35 | 55 | 50 | 100 |
| Riveting die diam. (mm) | 8 | 10 / 14 | 10 / 14 | 14 | 14 / 30 |
| Riveting die length (mm) | 50 - 140 | 40 - 120 / 40 - 170 | 40 - 120 / 40 - 170 | 40 - 170 | 70 - 170 / 45 - 200 |
| NE210 | NE300 | NE400 | NE430 | NE510 | |
| Riveting diameter (mm) (Rm=370 N/mm²) |
3 - 10 | 3 - 11 | 4 - 13 | 4 - 16 | 4 - 18 |
| Maximum riveting force (kN) | 12 | 16 | 25 | 30 | 40 |
| Spindle strok (mm) | 5 - 50 / 5 - 80 | 5 - 40 | 5 - 40 | 5 - 40 | 5 - 50 / 5 - 72 |
| Working pressure (bar) | 10 - 70 hy. | 1 - 6 pn. | 1 - 6 pn. | 1 - 8 pn. | 10 - 70 hy. |
| Riveting motor 230/400 V 50 Hz (kW) | 0,74 | 0,74 | 0,74 | 1,9 | 1,9 |
| Maximum double stroke volume (l) | 0,2 - 0,3 | 1,86 | 2,08 | 2,08 | 0,45 / 0,65 |
| Approx. weight. (kg) | 55 | 85 | 90 | 95 | 70 |
| Riveting die diam. (mm) | 14 | 14 | 14 | 30 | 30 |
| Riveting die length (mm) | 40 - 170 | 70 - 170 | 70 - 170 | 75 - 200 | 75 - 200 |
Effective production process due to simultaneous loading and riveting。

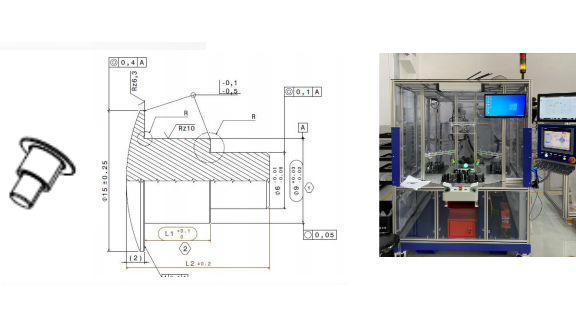

The movement range can be enlarged with wide-range axes Automatic riveting of different points, automatic replacement of riveting die.

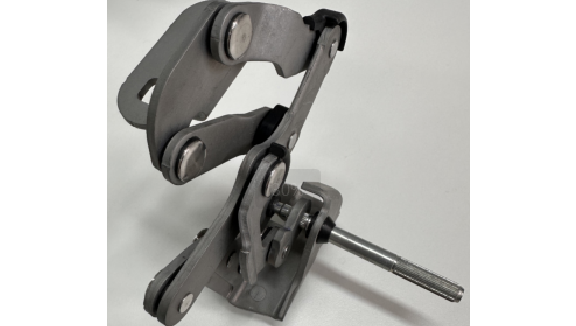

No Old Cpk
New Cpk≥1.67
