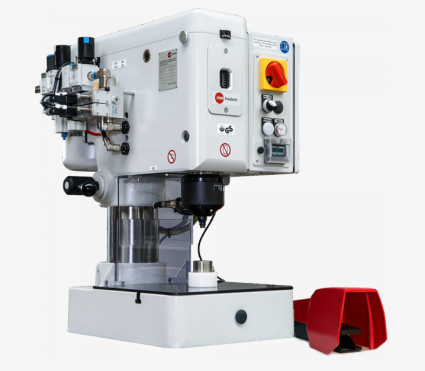

FMW Friedrich's safety riveting machines are designed with advanced safety features to ensure secure and efficient riveting operations. These machines offer high precision and reliability, making them ideal for industries where safety and accuracy are paramount. Equipped with protective measures that minimize risk to operators, they maintain productivity without compromising safety. The machines are versatile, capable of handling various riveting tasks, and are easy to integrate into existing production lines. With low maintenance requirements and robust construction, FMW Friedrich's safety riveting machines deliver both performance and peace of mind for manufacturers focused on safe, high-quality output.
| N100 | N200 | |
| Riveting diameter (mm) (Rm=370 N/mm²) |
2 - 6 | 3 - 10 |
| Maximum riveting force (kN) | 6 | 12 |
| Spindle stroke (mm) | 6 - 30 | 6 - 30 |
| Usable working stroke (mm) | 24 | 24 |
| Working pressure (bar) | 1 - 6 pn. | 1 - 6 pn. |
| Riveting motor 230/400 V 50 Hz (kW) | 0,74 | 0,74 |
| Max. double stroke volume (l) | 0,7 | 1,45 |
| Approx. weight (kg) | 170 | 170 |
| Working area (mm) | 1 - 181,5 | 1 - 181,5 |
| Projection (mm) | 170 | 170 |
| Clamping area (mm) | 320x290 | 320x290 |
| Length of riveting die (mm) | 65 - 120 | 65 - 120 |

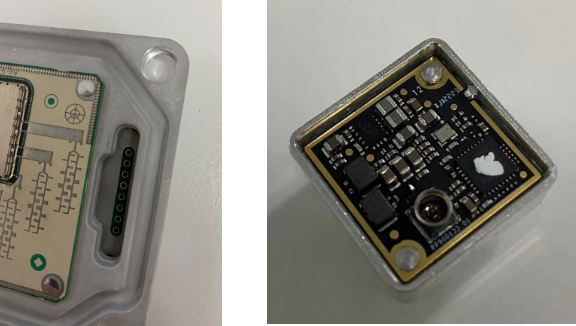

It replaces the traditional tightening process and connects the PCBA and the housing by riveting, making the process more stable and efficient.
Old Cpk≥1.33
New Cpk≥1.67
