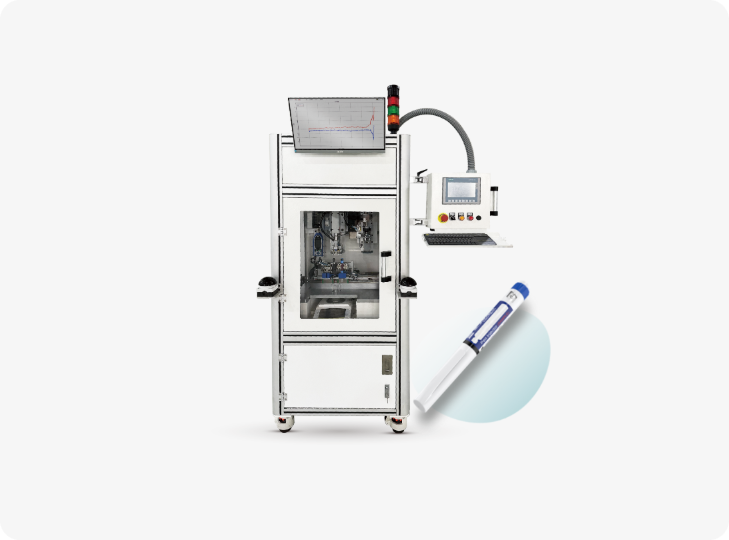

Insulin Pen Test Workstation Insulin Pen Test Workstation
Insulin Pen Test Workstation

Insulin Pen Test Workstation

We helped ensure the safety and reliability of automatic insulin pen injectors by providing custom test stations for major medical device manufacturers. Accuracy is tested on our advanced workstations. By checking the injection force, torque, and precision of injected quantity through simulating real-world situations, we have helped customers to increase quality assurance accuracy and modernize efficiency. This has improved the production process. Reduce manual testing and ensure compliance with regulatory standards. Our testing solutions help customers achieve the highest quality of joint and QA for the insulin pen test execution. This ensures the best results in terms of quality and resource management.

CONTACT US
Insulin Pen Test Workstation
Unique Features
Technical Parameters
Process Flow
Unique Features
  • Automatic test of cup drawing force
  • Automatic torque detection
  • Drug dosage monitoring
  • Trigger force tracking
  • Automatically record the flow of drug and at the tip of the needle and video of the last drop
  • Sound monitoring
  • Display, record, and judge dose
Technical
Parameters
  • Stroke:

    0-200 N

  • Torque Force:

    1nmm~20nmm

  • System Accuracy:

    0.1%

  • Dimension:

    L850*W960*H1850 (Excl. Lights)

  • Repeatability Of Position:

    <0.002 Mm

  • System Weight:

    700 Kg

  • Nominal Speed:

    250mm/S

  • Power:

    220v, 3kw

  • Balance Accuracy:

    0.08 Mg

Process Flow
  • Select The Product Program On The Control Panel.
  • Open The Safety Door, Place The Product Securely In The Fixture.
  • Close The Safety Door And Start The Process Using Both Hands On Controls.
  • For Pen Cap Test: Clamp The Cap With The Lower Cylinder, Move To Position, Press Down, And Clamp With The Upper Cylinder.
  • Start The Test, Complete The Pull, Release The Upper Cylinder And Reset.
  • For Torque Test: Move The Servo And Needle Cylinder To Position, Clamp With The Knob Cylinder, And Rotate The Servo For Torque Testing.
  • Finish The Torque Test, Loosen The Knob Cylinder, And Return The Servo To Its Original Position.
  • Begin The Injection Test, Perform Pressing, And Complete The Injection Cycle.
  • Reset All Components To Their Original Positions.
  • Open The Safety Door And Remove The Product.
